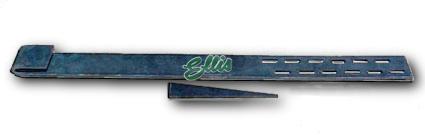

Ellis Single Bar Type Col. Form Clamps

Ellis Manufacturing Co., Inc.

(click image to enlarge)
SKUInfo/Size
SB-24
Adjustment Range: 13" to 28"
SB-36
Adjustment Range: 25" to 40"
SB-48
Adjustment Range: 37" to 52"
SB-60
Adjustment Range: 49" to 64"
SB-72
Adjustment Range: 61" to 76"
SB-84
Adjustment Range 73" to 88"
SBW-1
9" Extra Wedge
Quick Overview
    Wedge Included In Price of Bar
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Details
The Ellis Column Form Clamp is a simple way to clamp column forms. There are no moving parts and every bar is interchangeable. Only a hammer is needed to assemble the Column Form Clamps. They can be used for square or rectangular columns. Hook the bars together and drive the wedge down to tighten each corner. Quickly dismantle by tapping the wedges from the holes in the Column Clamps. Each bar can be nested together for storage.

The bars have been designed to fit columns at 1" increments using 5/8" or 3/4" plywood and 2x4" or 2x6" studs.

Each bar size has a 15" range of adjustment. For example - the SB-48 can be used on net concrete column sizes ranging from 33" to 48".
Additional Information
Manufacturer: Ellis Manufacturing Co., Inc.
For More Information on the Ellis Single Bar Type Col. Form Clamps, [Click Here] to Link to Manufacturer Web Site
