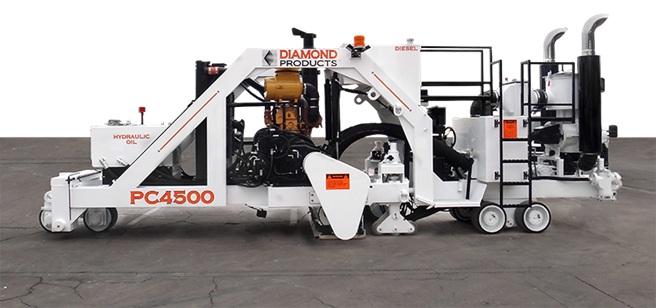

Bump Grinder

PC4500

Diamond Products

(click image to enlarge)
Quick Overview

  • Length: 28'
  • Width: 7"
  • Height: 9' 6"
  • Weight: 48,500 lbs.
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Details
Caterpillar Engine:
  • Model C15/540 Horsepower
  • Turbocharged/Charge air cooled
  • Electronically controlled
  • Maximum fuel consumption is 28.3 GPH
  • Fuel capacity - 200 gallons
  • Maximum engine speed - 2100 RPM
  • Engine oil pressure gauge (with dual low pressure shutdowns)
  • Engine coolant temperature gauge (with dual high temperature shutdowns)

    • Head Drive Power:
  • Power from engine is transmitted through fluid clutch gearbox
  • Power is transmitted to the cutting head using a Poly Chain GT Carbon belt
    • Blades:
  • Accepts 16"-18" blades on a 8" diameter spindle
  • 50" Stackable grinding
  • Operations Speeds: 1,900 RPM - maximum in High Range and 1,315 RPM maximum in Low Range
    • Propulsion:
  • 4 hydraulic wheel motor assemblies with integral brake and two speed function
  • Speed is 0-225 FPM forward/revers
    • Controls & Instrumentation:
  • Electronic joystick controlling
  • Lighted for night time operations
  • Ground drive pressure gauge
  • Blade coolant pressure gauge and alarm
  • Engine tachometer
  • Engine voltage meter
    • Additional Information
    Manufacturer: Diamond Products
    For More Information on the Bump Grinder, [Click Here] to Link to Manufacturer Web Site
