Provides a better and cleaner cast when applied on pre-stressed and pre-cast concrete forms
Cuts stripping time to an absolute minimum
Reduces form cleaning and repairing
Increases wood form life...prevents rust...and rustproofs metal forms
Effectively minimizes concrete build-up on pavers, R/M trucks, mixers, spreader-finishers, buggies, chutes and other equipment
Prevents bonding between poured concrete and the form
Breaks concrete bond between the surface and the form cleanly and effectively...leaves smooth surface
Will not stain or discolor concrete and can be painted over
Ready-to-use...requires no additional mixing
VOC compliant

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.

Details

USES

MEL-ROL waterproofing system provides a cost-effective answer to properly waterproof foundations, vertical walls and below-grade floors in residential and commercial construction. It is equally effective for use as between-the-slab waterproofing on plaza decks, parking decks and structural slabs. Use it as a waterproofing membrane to isolate mechanical and electronic rooms, laboratories, kitchens and bathrooms. MEL-ROL offers positive protection when "wrapped around" major rapid transit, vehicular, utility and pedestrian tunnel projects. MEL-ROL can also be used on insulated concrete forms (ICF).

Installation of PROTECTION COURSE from W. R. MEADOWS is recommended before backfilling. MEL-ROL also be used with drainage boards when specified.

DESCRIPTION

MEL-ROL waterproofing system is a flexible, versatile, dependable, roll-type waterproofing membrane. It is composed of a nominally 56 mil thick layer of polymeric waterproofing membrane on a heavy duty, four-mil thick, cross-laminated polyethylene carrier film. The two components are laminated together under strict quality-controlled production procedures.

A handy overlap guideline is printed 2 ½" (63.5 mm) in from the material edge on each side to assure proper overlap coverage and to assist in maintaining a straight application. Special exposed polymeric membrane strips are provided on both sides for positive membrane-to-membrane adhesion in the overlap area. The membrane strips are protected by a pull-off release strip. All components of the MEL-ROL waterproofing system work together to provide a cost-effective, positive waterproofing system that's quick and easy to apply.

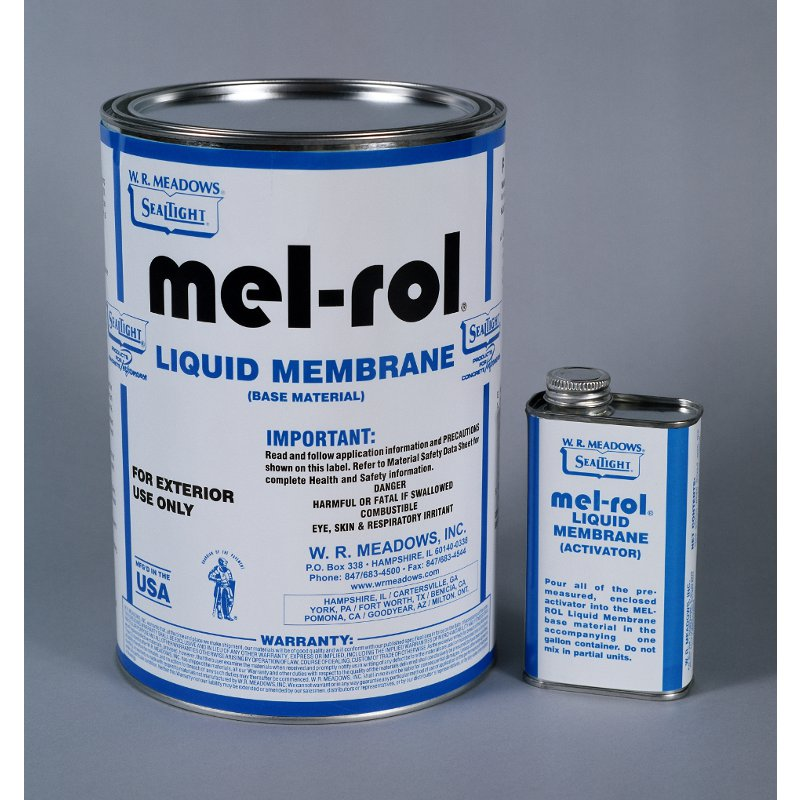

W. R. MEADOWS accessory products included in the MEL-ROL waterproofing system are: MEL-ROL LIQUID MEMBRANE, MEL-PRIME™ adhesive (solvent-based and water-based), POINTING MASTIC, DETAIL STRIP, CATALYTIC BONDING ASPHALT, TERMINATION BAR, PROTECTION COURSE and MEL-DRAIN™ drainage board.

PACKAGING

38.5" (.98 m) wide x 60' (18.29 m) long, one roll per carton.

COVERAGE

Provides 180 ft.² (17.88 m²) per roll. Gross coverage is 192.5 ft.². (Net coverage is 180 ft.² with overlap of 2 ½".)

SPECIFICATIONS

AREMA® Specifications Chapter 29, Waterproofing

Additional Information

Manufacturer: W.R. Meadows
