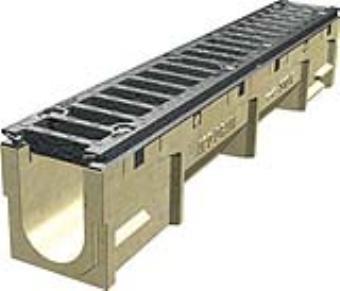

KS100S is the KlassikDrain K100S system, which has the integrally cast-in galvanized steel rail replaced by a stainless steel edge rail. KS100S is used for high profile applications, or where increased corrosion resistance is required - but Vinyl ester polymer concrete is not necessary.

(click image to enlarge)

Quick Overview

Meter channels: 0.6% sloped channels in meter lengths and 30 depths which connect to create 30 meter (98'-5") continuously sloping run. Neutral channels available in 4 depths. Can be used to create non-sloped runs, or inserted in sloped runs to increase length.
Closing/4" inlet/outlet cap: Fits all channels. Manufactured from gray ABS to complement edge rail. Guides aid cutting to correct height. 4" bell end connection to Schedule 40 pipe. Seal using PVC-ABS cement.
Series 600 catch basins: Catch basins with 4", 6" and 8" drill-outs for pipe connection. Supplied complete with grate. Available with plastic trash bucket or filter bag. Riser unit fits between top and bottom unit. Options include a choice of deep or short bases. Any channel can be connected into the catch basin by removing the end wall to the correct height. Drill-outs guide connection to channels 5, 10, 15, 20, 25 and 30.
K900 catch basin: In-line catch basin with 4" and 6" drill-outs for pipe connection. Available with plastic trash bucket. Options include in-line or side foul air trap. Any channel can be connected into the catch basin by removing the end wall to the correct height. Drill-outs guide connection to channels 5, 10, 15, 20, 25 and 30.
6" Sch. 40 outlet caps: 6" Schedule 40 plain end pipe, polypropylene oval to round adaptor cast into polymer concrete end cap, available in two heights. Solvent weld to coupler.
6" Sch. 40 inlet caps: 6" Schedule 40 plain end pipe, polypropylene oval to round adaptor cast into polymer concrete end cap, available in two heights. Solvent weld to coupler.
Half meter channels: Neutral channels in 4 depths to supplement meter channels. Side knockout and profiling enable side junction to be created.

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.

Details

ACO recommends the use of non-galvanized steel grates with KS100S to avoid galvanic corrosion (where galvanized steel reacts with stainless steel).

Additional Information

Manufacturer: ACO Drain
