A blast nozzle accelerates the air and abrasive as the mixture exits the end of the hose. The taper and length of the nozzle's inlet and outlet determine the pattern and velocity of the abrasive exiting the nozzle. The composition of the liner material determines its resistance to wear.

(click image to enlarge)

Quick Overview

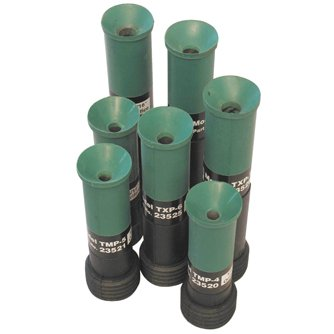

Short-venturi nozzles (TJP, TYP) designed for blasting 12 to 18 inches away from the surface.
Long-venturi nozzles (TSP, TMP, TXP) allow high production blasting at a distance of 18 to 24 inches for hardto- clean surfaces, and 30 to 36 inches for loose paint and soft surfaces
Expected life with expendable abrasives is approximately 300 hours
Durable natural rubber jacket
1-inch entry provides smooth transition and maximum productivity with 1-inch ID blast hose
1-1/4-inch entry ensures maximum productivity with 1-1/4-inch ID blast hose

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.

Details

Nozzles are sized by the diameter of their orifices in 1/16-inch increments. A No. 2 nozzle has a 2/16-inch (1/8-inch) orifice, a No. 3 nozzle has a 3/16-inch orifice, etc. The size of the nozzle orifice determines abrasive and air consumption. Air consumption is measured in cubic feet per minute (cfm) at a given pressure.

When choosing a nozzle, consider the amount of available air in cfm, the capacity of the blast machine and the inside diameter of the piping, and the blast and air hoses. For optimal performance, these elements must be compatibly sized.

If too large a nozzle is used, low blast pressure and rapid wear on the blast hose will occur. If too small a nozzle is used, smooth media flow will be difficult to achieve.

Additional Information

Manufacturer: Clemco

For More Information on the Tungsten Carbide Lined Rubber Jacketed Long & Short Venturi, [Click Here] to Link to Manufacturer Web Site
