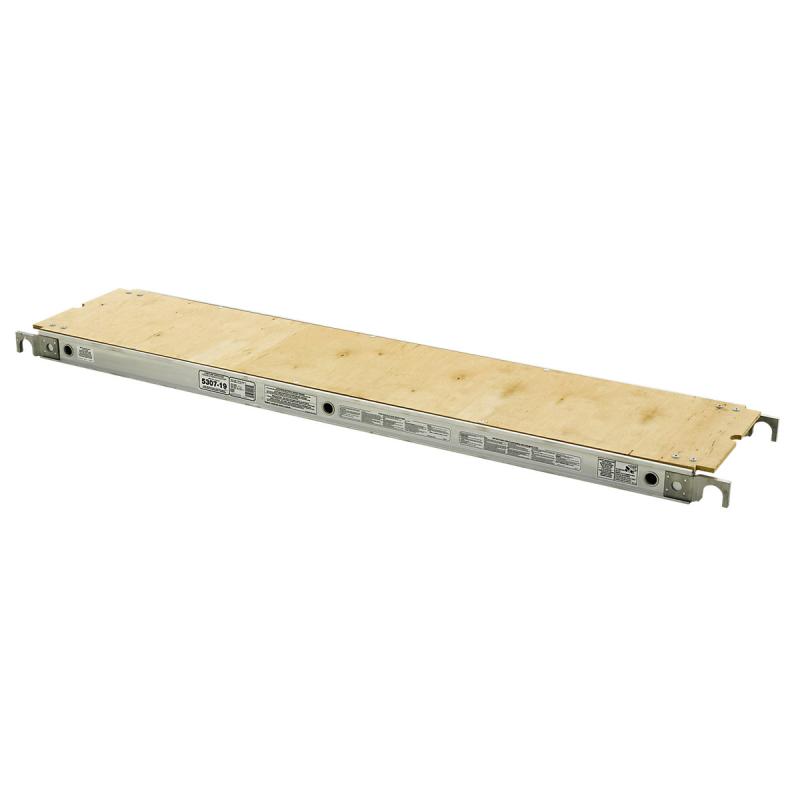

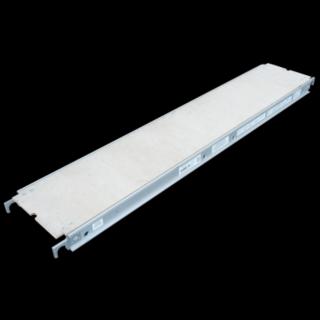

5307-19 7' Plywood Decked Aluma-Plank

5307-19

Werner Co.

5300 series Plywood Decked ALUMA-PLANK for use with steel scaffolds. Duty rating is either 50 pounds/square foot or 75 pounds/square foot depending on model. Available in 19 1/16" or 24" widths.

(click image to enlarge)
Quick Overview

    Features:
    • For Use With Steel Scaffolds
    • 19-1/16" wide, 7' long plywood decked plank
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Details

5300 series Plywood Decked ALUMA-PLANK for use with steel scaffolds. Duty rating is either 50 pounds/square foot or 75 pounds/square foot depending on model. Available in 19 1/16" or 24" widths.


Specifications
  • Side Rail Length: 7'
  • Approx. Width: 19-1/16"
  • Duty Rating/Sq Ft: 75 lbs.
  • Material: Aluminum rails, plywood deck
  • Certifications: ANSI A10.8 (2001); OSHA
  • Approx. Cu. Ft. Per Unit: 2.91
  • Approx. Shipping Wt. Lbs.: 27

Dimensions
  • Approx. Width: 19-1/16"
  • Side Rail Depth: 3-1/2"

Additional MT Series Models
Model No.Side Rail LengthApprox. WidthDuty Rating/Sq FtApprox. Cu. Ft. Per UnitApprox. Shipping Wt. Lbs.
5307-197'19-1/16"75 lbs.2.9127.0
5307-247'24"75 lbs.3.6332.0
5308-198'19-1/16"75 lbs.3.3138
5310-1910'19-1/16"75 lbs.4.1147
5310-2410'24"75 lbs.5.1353
L5308-198'19-1/16"50 lbs.4.230
L5310-1910'19-1/16"50 lbs.5.2539
Additional Information
Manufacturer: Werner Co.
