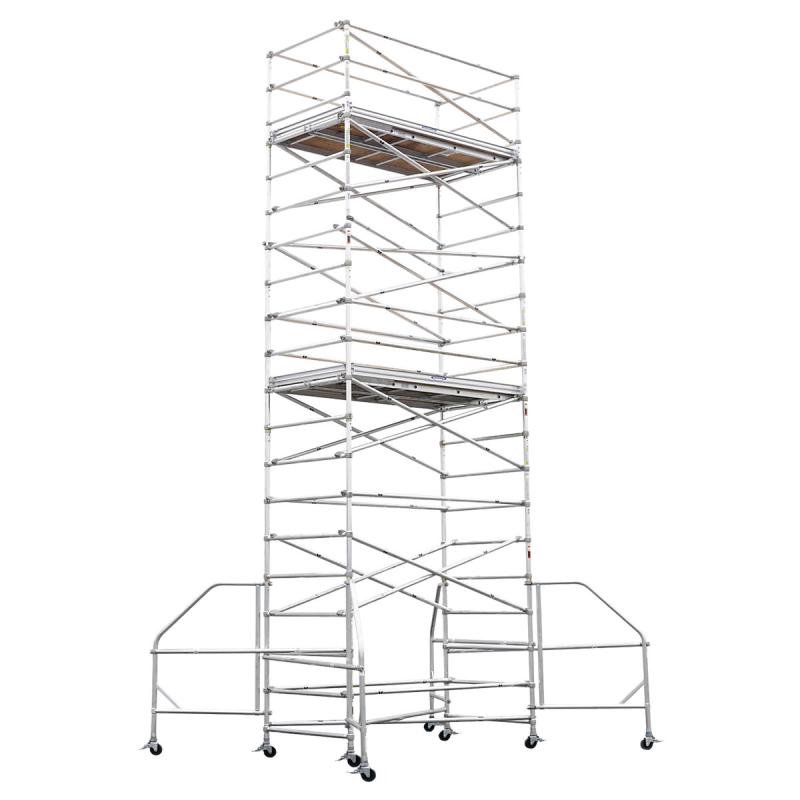

4203-23 Wide Span 23' H x 10' L Platform Scaffold Tower

4203-23

Werner Co.

The 4200-23 series aluminum scaffold towers offer 6', 8', or 10' length platforms that are 29" wide, and 23' maximum platform height. Load capacity is 25 lbs. per square foot or 500 lbs. maximum per deck and 1,000 lbs. maximum per scaffold. Additional Werner scaffold sections and components can be added to the tower for maximum flexibility.

(click image to enlarge)
Quick Overview
  • Feature:
  • Simplified ordering--order one model number and receive everything needed to build a complete tower
  • Takes the guesswork out of what is required to meet code
  • Ideal for schools, hospitals and building maintenance
  • Includes guard rails, toeboards, and planks with access door that allows end users to climb from inside. 23' Towers include additional fixed board (no access door)
  • Outriggers included
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Details
Specification:
  • Feature:Size/Details
  • Tower Style:Wide Span
  • Load Capacity/sq. ft.:25 lbs.
  • Load Capacity/Deck:500 lbs.
  • Load Capacity/Scaffold:1000 lbs.
  • Material:Aluminum
  • Certifications:ANSI A10.8 (2001)
  • Approx. Cu. Ft. Per Unit:294.69
  • Approx. Shipping Wt. Lbs.:862


  • Dimensions:
  • Feature:Size
  • Platform Height:23'
  • Total Tower Height:26' 4"
  • Platform Width:4'6"
  • Total Width:10' 10"
  • Platform Length:10'
  • Total Length:14' 7"


  • Additional 4200-23 Series Models
    Model No.Approx.Cu.Ft.Per UnitApprox.Shipplng wt.Lbs
    4201-23209.27695.0
    4202-23251.98778.0
    4203-23294.69862.0
    Additional Information
    Manufacturer: Werner Co.
