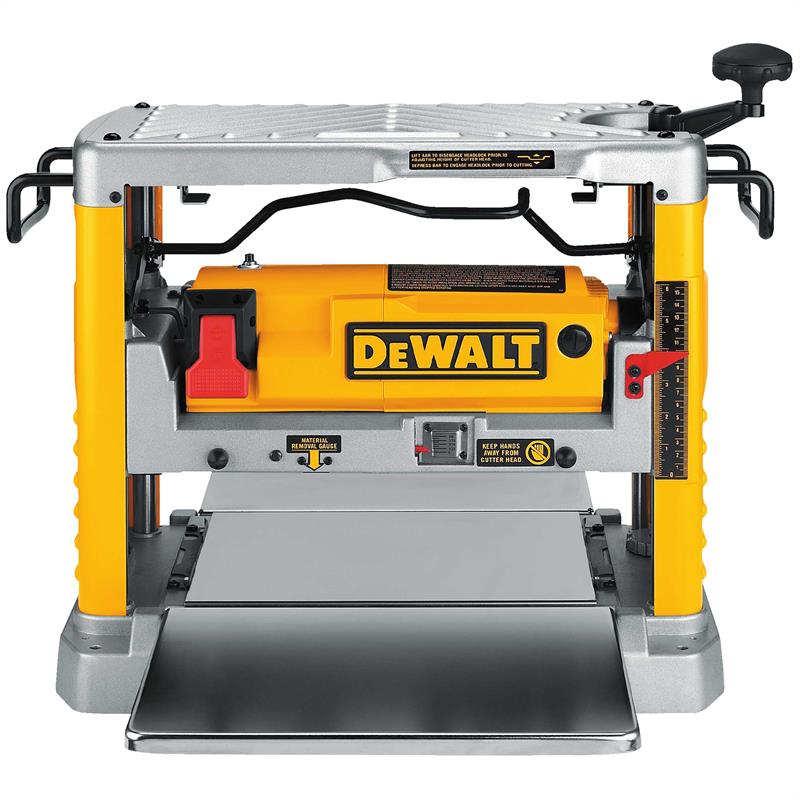

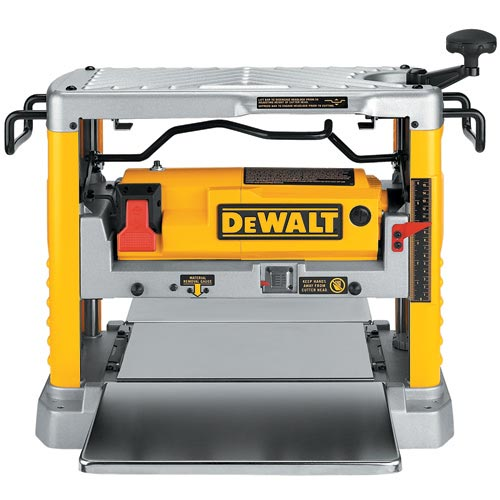

The DW734 12-1/2" Thickness Planer with Three Knife Cutter-Head is powered by a 15 Amp motor for managing large, deep cuts in hardwood. Three-knife cutter head with speed of 10,000 rpm provides 96 cuts per inch, delivering one of the finest finishes of any portable planer.

(click image to enlarge)

Quick Overview

Amps 15Amps
No Load Speed 10,000rpm
Max Depth of Cut 1/8''
Depth Capacity 6''
Width Capacity 12-1/2''
Tool Weight 80lbs
Shipping Weight 85.2lbs

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

Powerful 15 amp, 20,000 rpm motor handles larger, deeper cuts in hardwoods.
Three-knife cutter head with 10,000 rpm cutter-head speed provides 96 cuts per inch, one of the finest finishes of any portable planer
Disposable, reversible knives deliver 30% more knife life and make knife change fast and easy.
Four-column carriage lock drastically reduces the movement that causes snipe
Extra-long infeed and outfeed tables provide 33-1/2" of material support.
Material removal gauge and extra-large thickness scale deliver accurate cuts with every pass
Turret depth stop allows user to return to their most frequently used depths with ease

Specifications

Amps 15 Amps
Depth Capacity 6 in
Max Depth of Cut 1/8 in
No Load Speed 20,000 (motor)/10,000 (cutterhead) rpm
Planer Type Stationary
Power Tool Type Corded
Tool Weight 80 lbs
Width Capacity 12-1/2 in

Includes

Dust Hood

Additional Information

Manufacturer: DeWalt
