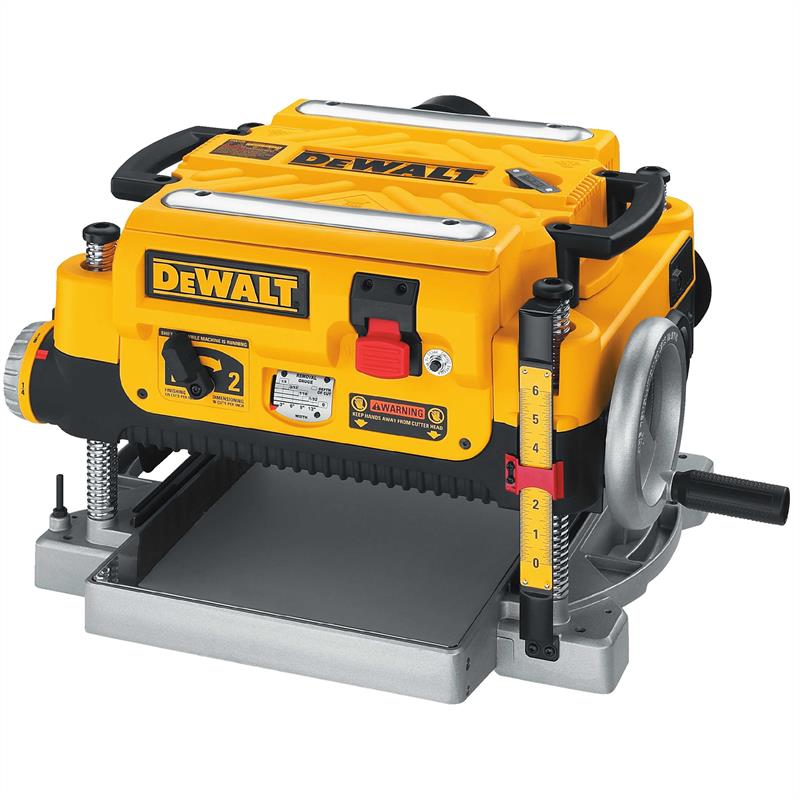

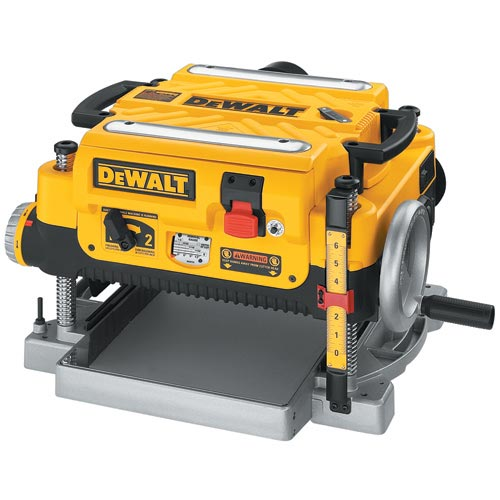

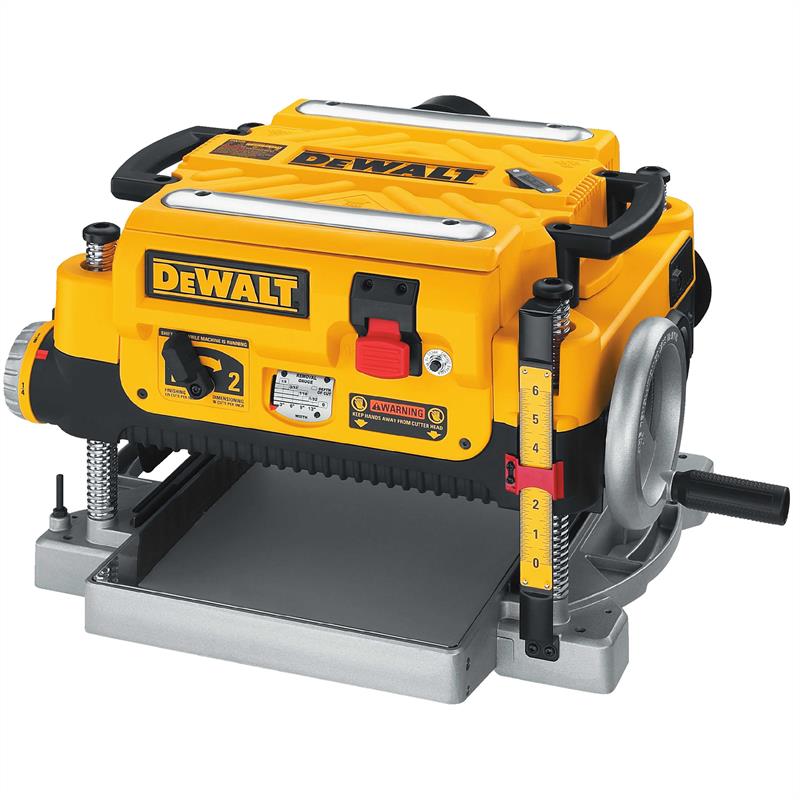

The DW735 13" Three Knife, Two Speed Thickness Planer is powered by a 15 Amp motor to easily managing large cuts in wider materials. Three-knife cutter head with 10,000 rpm and feed speed options for 96 or 179 CPI provide optimal performance.

(click image to enlarge)

Quick Overview

Amps 15.0Amps
No Load Speed 20,000 (motor)/10,000 (cutterhead)rpm
Max Depth of Cut 1/8''
Depth Capacity 6''
Width Capacity 13''
Tool Weight 92lbs
Shipping Weight 100lbs

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.

Details

Features & Specs

FEATURES

Powerful 15 amp, 20,000 rpm motor handles larger cuts in wider materials with ease
Three-knife cutter head with 10,000 rpm cutter-head speed delivers 30% longer knife life and makes knife change faster and easier
Two-speed gear box allows users to change feed speed to optimizing cuts per inch at 96 or 179 CPI
Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
19-3/4" cast aluminum base is 2X more rigid than a standard 10" base and folding tables
Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
Material removal gauge and extra large, thickness scale delivers accurate cuts with every pass
Extra large, turret depth stop allows user to return to most frequently used thicknesses with ease

Specifications

Amps 15.0 Amps
Depth Capacity 6 in
Max Depth of Cut 1/8 in
No Load Speed 20,000 (motor)/10,000 (cutterhead) rpm
Planer Type Stationary
Power Tool Type Corded
Tool Weight 92 lbs
Width Capacity 13 in

Includes

Dust Hose Adapter

Additional Information

Manufacturer: DeWalt
