DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode

DH38YE2

Metabo - Hitachi

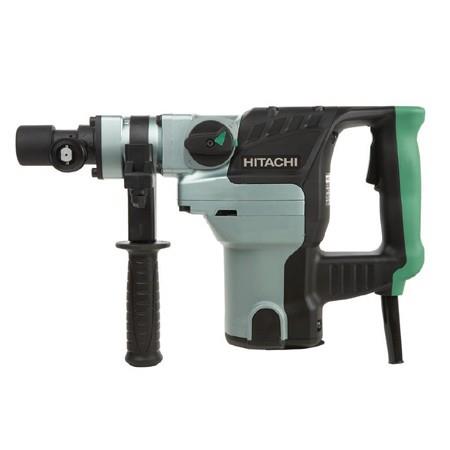

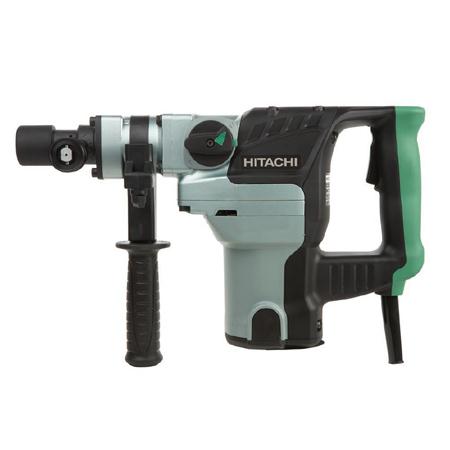

Hitachi DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode
(click image to enlarge)
Quick Overview
    • Features more power, lighter weight, less vibration and lower noise than its well known predecessor
    • Powerful 8.4 Amp motor delivers 950 watts of input power for maximum productivity
    • Produces 5.9 ft/lbs of impact energy for faster drilling and chiseling through concrete
    • Two modes of operation - hammer only and hammer drilling controlled by the simple turn of a knob
    • Low vibration levels of only 18.8m/s2 (full load) for more comfortable operation in hand
    • Low noise levels of only 95.2 dB (full load) for a less noisy work environment
    • Safety clutch shuts down rotation in the event of a bound bit for improved user protection
    • Dust resistant cover protects the tool from dust and debris and prolongs tool life
    • Auto-stop carbon brushes prevent motor damage and are accessible for simple maintenance checks
    • Sealed grease system adds to the tools maintenance free operation
    • Soft elastomer handle provides a secure grip and absorbs vibration for comfort and control during operation
    • Adjustable 360 degree side handle provides better control and can be removed easily
    • Download the DH38YE2 Tool Card

    Includes:

    • Side Handle  (330209)
    • Dust Cover  (993245)
    • Depth Stopper  (971786)
    • Case  (331965)
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Details
Shank Spline
Chuck Size 1-1/2"
Full-Load Speed 510 RPM
Full-Load Impact 2,800 BPM
Impact Energy 5.9 ft/lbs
Amps 8.4
Watts 950
Capacity: Solid Bit 1-1/2"
Capacity: Core Bit 4-1/8"
No-Load Vibration Level 4.8 m/s2
Full-Load Vibration 18.8 m/s2
No-Load Noise Level 84.5 dB
Full-Load Noise Level 95.2 dB
Modes Hammer Only/ Hammer-Drill
Length 16-11/32"
Weight 14.1 lbs
Additional Information
Manufacturer: Metabo - Hitachi
For More Information on the DH38YE2 1-1/2 Inch Spline Shank Rotary Hammer, 2 Mode, [Click Here] to Link to Manufacturer Web Site
