Bypass Slab

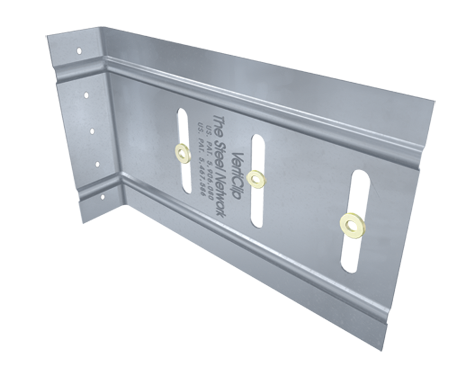

VertiClip SLB

The Steel Network

VertiClip SLB connects exterior curtain wall studs, bypassing the building structure, while allowing for vertical deflection of the structure up to 2" (1" up and 1" down). VertiClip's unique design provides both an anti-friction and anti-seizure connection between the clip and the stud web surface thereby preventing a transfer of vertical forces into curtain wall framing, which is not engineered to support axial loads. VertiClip SLB eliminates flange-loaded, friction-fit clips, which do not address web-crippling. Allowable loads are based on use of two #12 screws for attachment to stud (provided by TSN).
(click image to enlarge)
Quick Overview

  • Positive, mechanical attachment

  • Only certified, 50ksi steel is used

  • Step Bushings pre-installed for accurate placement

  • Rated screws provided

  • Load transferred from stud web

  • Elimination of friction-held assemblies

  • Meets all building code criteria

  • Adaptable for multiple configurations

  • Eliminates shims and scabs

  • Aligns wall studs quickly and easily by accounting for construction tolerances

  • Eliminates bridging or strapping within 12" of connection

  • Attaches to structure with PAF or welds

Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: The Steel Network
For More Information on the Bypass Slab, [Click Here] to Link to Manufacturer Web Site
