Bypass Structure

VetriClip SLS

The Steel Network

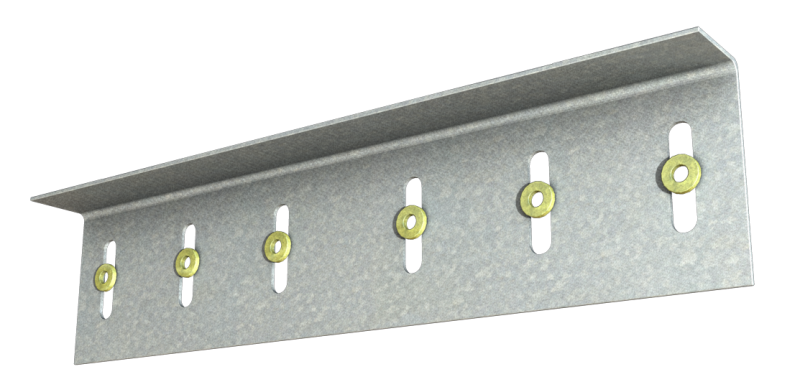

The VertiClip SLS slide clip connects exterior curtain wall studs, bypassing the building's structural frame, while allowing for a vertical deflection of the structure up to 1½" (¾" up and ¾" down). VertiClip's unique design provides both an anti-friction and anti-seizure connection between the clip and the stud web surface thereby preventing a transfer of vertical forces into curtain wall framing, which is not engineered to support axial loads. Allowable loads are based on use of two #12 screws for attachment to stud (provided by TSN).
(click image to enlarge)
Quick Overview

  • Provides a positive, load-rated, mechanical attachment to web of stud

  • Eliminates friction-based assemblies

  • Utilizes only certified, 50ksi steel

  • Eliminates untested "scabs" or shims

  • Load rated screws provided

  • Step Bushings pre-installed for accurate placement

  • Meets all building code criteria

  • Adaptable for multiple configurations

  • Align wall studs quickly and easily by accounting for construction tolerances

  • Lightweight assembly

  • Eliminates bridging or strapping within 12" of connection
Interested in this item or want more information?
Call Mon. through Fri. 7:00 AM - 5:00 PM CST
Phone: (409) 866-6103
Email: Sales@hbsltd.net

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: The Steel Network
For More Information on the Bypass Structure, [Click Here] to Link to Manufacturer Web Site
